Double-Sided Silicone Adhesive Sheets

If you’re still using glue, clamps, or screws, you’re likely wasting time—and risking performance.

Double-sided silicone adhesive sheets provide a clean, flexible, and heat-resistant bonding solution for industrial, medical, and consumer applications.

I first tried double-sided silicone sheets to reduce assembly time on a baby product prototype. Not only did they simplify the build—they outperformed every traditional bonding method I had used before. Now, I use them whenever I can.

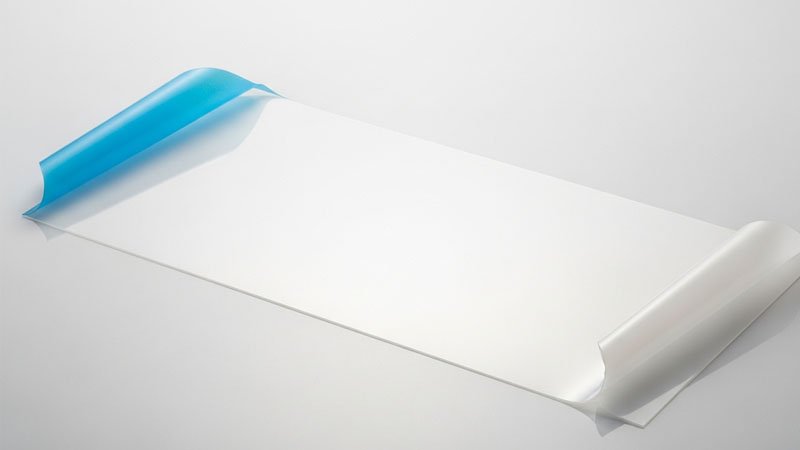

What Are Double-Sided Silicone Adhesive Sheets?

You’ve probably seen double-sided tape—but these aren’t the same thing.

Double-sided silicone adhesive sheets are solid silicone layers coated with pressure-sensitive silicone adhesive on both sides, allowing permanent or temporary bonding between surfaces.

These sheets usually consist of three layers:

• A core silicone layer that provides mechanical strength and thermal stability
• A layer of silicone adhesive on each side
• Release liners that protect the adhesive before application

They come in rolls or pre-cut sheets, with thicknesses from 0.2 mm to 3 mm. Unlike acrylic or rubber-based adhesives, silicone adhesives bond well to low-energy surfaces like silicone rubber, PTFE, and metal—making them perfect for tough industrial or medical use.

The first time I used them, I was surprised by how well they stuck to both metal and silicone, without any curing or surface treatment.

Why Choose Silicone Adhesive Over Traditional Adhesives?

I used to rely on liquid glue or thermal bonding, but they often failed under stress or high temperature.

Silicone adhesives offer better thermal resistance, flexibility, and long-term durability compared to acrylic or rubber adhesives.

Here’s what sets silicone adhesive sheets apart:

• Temperature resistance from –50°C to +230°C
• Non-toxic and odorless
• Chemically stable even in moisture, ozone, or UV
• Flexible bonding, even on curved surfaces

In contrast, rubber adhesives may soften or degrade above 80°C, and acrylic adhesives can become brittle over time.

When I built a heat-resistant gasket prototype, I tested silicone adhesive vs acrylic tape. Only the silicone sheet survived the oven test without peeling.

What Applications Are Best for Double-Sided Silicone Sheets?

The first time I used these sheets was on a silicone baby mat assembly—it saved me from heat welding or chemical bonding.

Double-sided silicone sheets are used in medical devices, electronics, automotive gaskets, baby products, and high-heat industrial environments.

Here are some common uses:

• Medical devices: Skin-safe bonding, wearable sensors
• Electronics: Thermal interface materials, sensor pads
• Automotive: Gasket sealing, vibration damping
• HVAC: Quick-mount insulation, noise barriers
• Baby products: Bonding silicone components without glue

I’ve personally used them in:

• Sealing vibration-sensitive surfaces on an HVAC blower
• Creating a child-safe bond between a silicone placemat and table surface
• Attaching a silicone rubber keypad to a control panel—no screws, no mess

For high-value or sensitive products, these sheets save time and reduce failure risk. No messy glue, no residue, no drying time.

Are They Easy to Apply and Remove?

Some adhesives stick forever, while others fall off after a week. I’ve used both. These silicone adhesive sheets strike a smart balance.

Double-sided silicone adhesive sheets are easy to cut, apply, and—depending on the adhesive grade—can be permanent or removable.

They work just like tape, but with more structure. Peel off one release liner, apply to the first surface, then peel the second liner and press onto the second surface. That’s it.

Tips from my experience:

• Use a roller or flat edge to press firmly and avoid air bubbles
• Clean both surfaces before applying
• Some medical-grade adhesives can be removed without residue
• For permanent bond, wait 24 hours for full adhesion

Some silicone adhesive sheets are also repositionable, which helps during prototyping or assembly. I used this when aligning a complex gasket for a client—it saved a full day of rework.

What Thickness and Shore Hardness Should I Choose?

The wrong thickness or hardness can ruin the seal. I learned that the hard way on a packaging machine panel.

Choose thickness based on gap size and hardness (Shore A) based on compression and flexibility needs—common sheets range from 0.5mm to 2mm, 30–70 Shore A.

For thin bonds like electronics or wearables, I recommend:

• 0.2–0.5 mm thickness
• 30–40 Shore A for flexibility

For gaskets or panels:

• 1–2 mm thickness
• 50–70 Shore A for strength

When testing, I cut a few samples and layered different thicknesses until I found the exact compression needed. That’s the beauty of working with sheets—you’re in control.

Where Can I Find High-Quality Double-Sided Silicone Sheets?

Not all silicone sheets are made the same—even if they look identical.

Choose suppliers who offer certified silicone, adhesive strength data, customizable options, and application support.

I look for suppliers that provide:

• FDA or LFGB certification for baby or food use
• Adhesive performance data (peel strength, holding power)
• Temperature resistance charts
• Die-cutting or laser cutting services
• Custom sizes, colors, and liner options

Ruiyang silicone manufacture high-performance double-sided silicone sheets with food-safe adhesives, flame resistance, and excellent bonding ability. Whether for baby products or industrial gaskets, our sheets are customizable to meet your project’s exact needs.

Conclusion

Double-sided silicone adhesive sheets are a smart, clean, and high-performance bonding solution for demanding applications.
